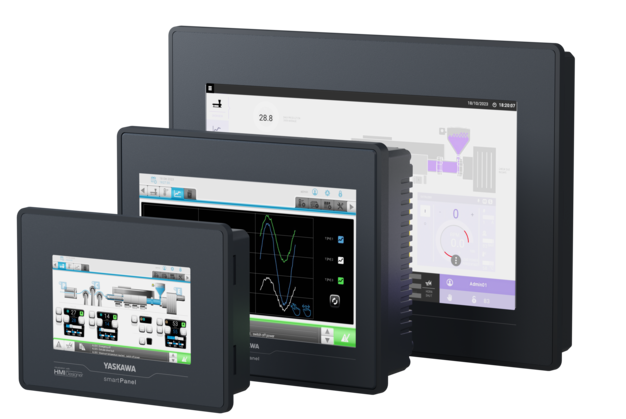

smartPanels
Operating & Monitoring
smartPanels are optimally designed for medium-sized applications. They stand for high usability and connectivity. Equipped with Movicon 11 Standard, the user is practically unrestricted in terms of tags, screens, recipes, alarms, etc.
Characteristics
- Display size: 4,3”, 7”, 10”
- 65k colors
- Processor: ARM Cortex-A8 1000 MHz
- Interfaces: USB-A, Ethernet, RS232/422/485
- Memory: 512MB RAM, 4GB Flash (2 GB User memory)
Visualization system Movicon
- Vector graphics
- Comprehensive symbols library
- VBA support
- Extensive I/O driver library (import of variables from the PLC possible)
- Powerful alarm and recipe management
- Data acquisition and handling
- Trend curves and archiving of process data as historical data
- Extensive driver library
- Movicon project scalability from HMI to Scada platform
- Multilingual support
- User management
- Remote management for remote maintenance
- Remote access via standard VNC client
- Integrated Ethernet TCP/IP networking
- Integrated AWL logic (STEP5/STEP7)
- 3rd Party PLC support
