Highest quality coupled with outstanding performance has a name: MOTOMAN

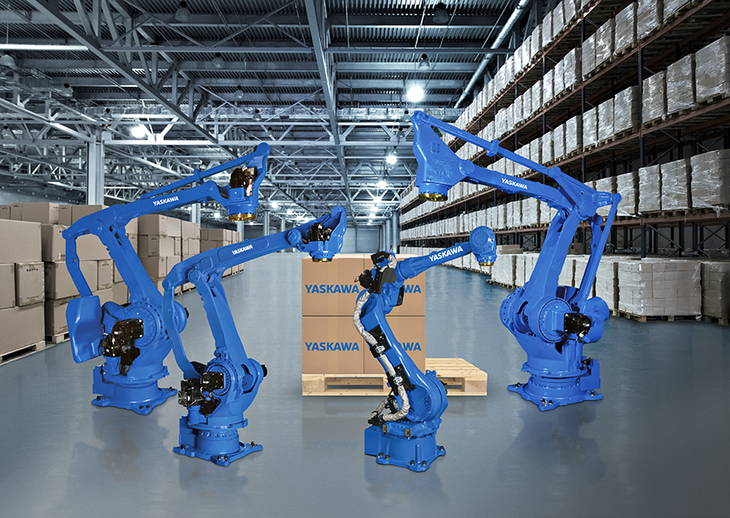

PL Series
PL80
Slim & flexible 5-axis Palletizing Robot

Overview
The MOTOMAN PL80 robot easily palletizes loads weighing up to 80 kg and has enormous axis speeds to ensure high palletizing cycles. Thanks to its kinematics, the small palletizing and handling robot of the Motoman PL series is ideally suited for box, carton and pack palletizing, for example in the growing logistics and e-commerce market. Very high palletizing cycles are required here. The MOTOMAN PL80 meets these requirements with over 800 cycles per hour.
Furthermore, the MOTOMAN PL80 also impresses with its low overall height, slim design and small footprint, in areas of application where space is often at a premium. Despite its very compact and slim design, the manipulator has sufficient horizontal and vertical reach for versatile applications, for example in end-of-line palletizing.
- High-Speed Palletizing: Achieve exceptional throughput with over 1,700 cycles per hour.
- Heavy-Duty Payload: Handle a wide range of products with a robust 190 kg payload capacity.
- Extended Reach & Stacking: Maximize workspace utilization with a 3,159 mm reach and over 2,600 mm stacking height.
- Optimized Efficiency: Streamline end-of-line packaging and logistics with reliable 4-axis robotic automation.

Technical Details
- Number of Axes
- 5
- Payload
- 80 kg
- Max. Working Range
- 2061 mm
- Repeatability
- 0.03 mm
- Weight
- 565 kg
- Power Supply
- 4.5 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 180 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed B Axis
- 180 °/s
- Maximum Speed T Axis
- 500 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
